ACT Performance Clutch Kits – Deliver Your Power to the Road Without Loss
Have you invested in your engine's performance, but when you accelerate, it feels like the power is just vanishing? That is the moment your factory clutch reaches its limits. As soon as the torque exceeds the holding capacity of the original pressure plate, it begins to slip – valuable performance is lost, and wear increases massively.
ACT (Advanced Clutch Technology) offers the perfect solution. Whether you are looking for an upgrade for your sporty daily driver or need an uncompromising setup for Drag Racing, Time Attack, or Drift competitions: ACT kits are engineered to safely handle your engine's increased torque.
With capacity increases ranging from a moderate 20% over stock to an extreme 400% for high-end builds, ACT delivers exactly the clamp load your setup requires. The focus is not just on raw strength, but also on a precise pedal feel and maximum reliability under high thermal stress.
This kit features ACT's Heavy Duty pressure plate. ACT pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT's 6-pad spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Characteristics:
Feel:
Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.
Life:
Moderate friction life, extended by ACT's exclusive diaphragm design.
Quality:
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance.
Recommendation:
Recommended for high horsepower street or race use.
Difference:
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability.
Technical data:
Disc Diameter (Inches): 8.8
Disc Diameter (Millimeters): 224
Material: ceramic
Weight: 25.3 lbs (approx. 11,48 kg)
Spline Count: 24
Spline Size (Inches): 1
Torque Capacity (ft/lbs.): 345
Torque Capacity (Nm): 467
Torque Capacity over OE: 117%

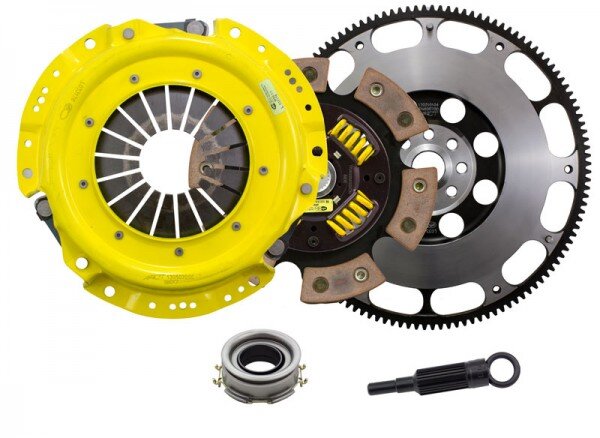

What's Included in this kit?
4224218-1 - ACT Race Disc (6-Pad Sprung)
AT90 - ACT Alignment Tool
SB017 - ACT Pressure Plate P/PL Heavy Duty
RB004 - ACT Release Bearing
PB1004 - ACT Pilot Bearing
600700 - ACT XACT Flywheel Prolite
Fits following cars:
Subaru BRZ 2013-2016 2.0L H4 1998cc 122 CID FA20D (Must be used with ACT flywheel and pressure plate)- Toyota GT86 2013-2017 2L H4 FA20 (Included in kit)
