ACT Performance Clutch Kits – Deliver Your Power to the Road Without Loss
Have you invested in your engine's performance, but when you accelerate, it feels like the power is just vanishing? That is the moment your factory clutch reaches its limits. As soon as the torque exceeds the holding capacity of the original pressure plate, it begins to slip – valuable performance is lost, and wear increases massively.
ACT (Advanced Clutch Technology) offers the perfect solution. Whether you are looking for an upgrade for your sporty daily driver or need an uncompromising setup for Drag Racing, Time Attack, or Drift competitions: ACT kits are engineered to safely handle your engine's increased torque.
With capacity increases ranging from a moderate 20% over stock to an extreme 400% for high-end builds, ACT delivers exactly the clamp load your setup requires. The focus is not just on raw strength, but also on a precise pedal feel and maximum reliability under high thermal stress.
This kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT Modified spring-centered street discs feature premium organic friction material with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. Modified street discs allow for quicker shifting and engagement. Quiet operation with increased strength and reliability.
Characteristics:
Feel:
Moderate to heavy pedal effort, smooth positive engagement, OE to mild gear rattle.
Life:
Longer clutch life achieved through ACT's exclusive diaphragm design.
Quality:
Precisely balanced and uses premium organic friction materials for heat tolerance, faster recovery from overheating and prevents warping of mating surfaces.
Recommendation:
Recommended for street and race use.
Difference:
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability.
Technical data:
Disc Diameter (Inches): 9.8
Disc Diameter (Millimeters): 250
Material: Organic
Weight: 18.6 lbs (approx. 8,44 kg)
Spline Count: 14
Spline Size (Inches): 1-1/4
Torque Capacity (ft/lbs.): 655
Torque Capacity (Nm): 888
Torque Capacity over OE: 62%

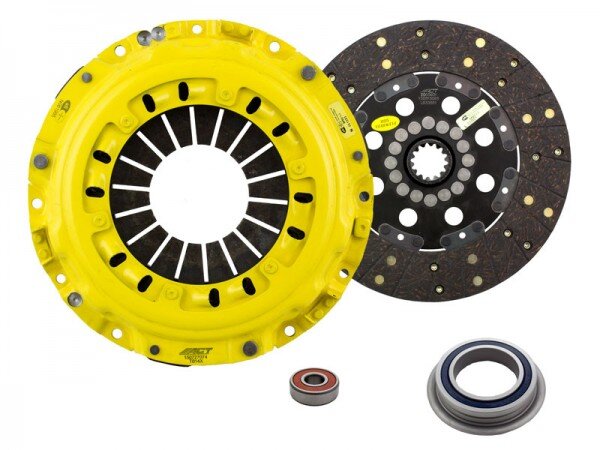

What's Included in this kit?
2000601 - ACT Modified Street Disc (Rigid)
PB1004 - ACT Pilot Bearing
RB000 - ACT Release Bearing
T014X - ACT Pressure Plate P/PL Xtreme
Fits following cars:
Toyota Supra MK4 (A80) 1994-1998 3.0L L6 2997cc Turbo 2JZ-GTE (V160 Transmission - Pull Type Clutch)
