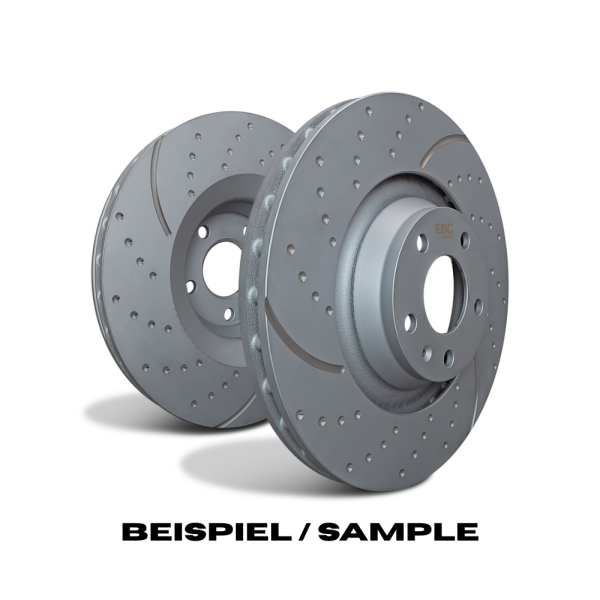

EBC Turbo Groove Disc – Maximum Performance through Slotted and Dimpled Precision
Are you looking for the perfect combination of aggressive aesthetics and uncompromising braking performance?
The EBC Turbo Groove Disc is the top choice for drivers who want to take their vehicle to a new level, both visually and technically. This performance brake disc was specifically developed to withstand the highest thermal loads. Whether on twisty backroads or during sporty use: the Turbo Groove Disc ensures a cool braking system and maximum deceleration when it matters most.
Peak Performance through Innovative Design
The striking design of the Turbo Groove Disc is much more than just looks. The combination of wide-reaching slots and special dimples makes this disc a true high-tech component for your braking system.
-
Efficient Gas Venting: The slots specifically channel brake gases, dust, and debris away from the contact surface. This effectively prevents dreaded brake fading and ensures a consistent pedal feel.
-
Dimpled instead of Drilled: Unlike completely cross-drilled discs, Turbo Groove Discs are only dimpled. This ensures optimal cooling without weakening the structural integrity of the disc – thus preventing stress cracks.
-
Self-Cleaning & Scraper Effect: The slots pull cool air under the pads and simultaneously act like a scraper. They remove glazing and residues from the brake pad, keeping the surface flat and guaranteeing a permanent aggressive "bite."
-
Precise Manufacturing: With a diameter of 284 mm, this disc is precisely matched to the requirements of your vehicle.
EBC Brakes – Performance "Made in UK"
Trust the expertise of one of the world's leading manufacturers of performance brakes. Turbo Groove Discs are manufactured in EBC's own factories in Great Britain. By having full control over the entire production process – from casting to final finish – EBC guarantees a material quality that is unrivaled in the aftermarket.
Safety for Operation in Europe:
Despite their sporty focus, legality is EBC's top priority. Many Turbo Groove brake discs already carry certifications. This performance brake disc has the following approval: KBA61188 / KBA61321*01
Pro Tip: To exploit the full performance of the Turbo Groove Disc, we recommend combining it with EBC Yellowstuff or Redstuff brake pads for higher friction coefficients and extreme stability.
Upgrade your braking system now to the ultimate Turbo Groove performance.
Technical Data
| Dimensions: |
284x44x22 mm |
| Standard brake caliper type: |
Girling/TRW |
| Fitting Position: |
Front Axle |
| Design: |
vented |
| Material: |
G3000 Grey Cast Iron with copper content (Discalloy®) |
| Certification: |
KBA61188 / KBA61321*01 |
| Article Number / EAN: |
GD414 / 5050953012587 |
Suitable for the following vehicles:
2008-2011 Abarth 500 1.4 Turbo 135PS Petrol
2008-2011 Abarth 500 1.4 Turbo 160PS Petrol
2011-2021 Abarth 500 1.4 Turbo 135PS Petrol Front Pads 2 Wear Leads
2011-2021 Abarth 500 1.4 Turbo 160PS Petrol Front Pads 2 Wear Leads
2012-2016 Abarth 595 1.4 Turbo 160PS Petrol Front Pads 2 Wear Leads
2016- Abarth 595 1.4 Turbo 145PS Petrol Front Pads 2 Wear Leads
2016-2021 Abarth 595 1.4 Turbo 165PS Petrol Front Pads 2 Wear Leads
2008-2012 Abarth 695 1.4 Turbo 180PS Petrol
1992-1996 Alfa Romeo 155 2.0 Turbo Petrol
1996-1998 Alfa Romeo 155 2.0 Turbo Petrol
1992-1996 Alfa Romeo 155 2.5
1996-1998 Alfa Romeo 155 2.5
1993-1996 Alfa Romeo 155 2.5 Turbo Diesel
1996-1998 Alfa Romeo 155 2.5 Turbo Diesel
2011-2021 Chrysler (UK) Delta 1.4 Turbo 120PS Petrol Front Pads 2 Wear Leads
2011-2021 Chrysler (UK) Delta 1.4 Turbo 140PS Petrol Front Pads 2 Wear Leads
2011-2021 Chrysler (UK) Delta 1.6 Turbo Diesel Front Pads 2 Wear Leads
2007-2010 Fiat Bravo 1.4 Turbo 120PS Petrol
2010-2014 Fiat Bravo 1.4 Turbo 120PS Petrol Front Pads 2 Wear Leads
2008-2010 Fiat Bravo 1.6 Turbo 120PS Diesel
2008-2010 Fiat Bravo 1.6 Turbo 105PS Diesel
2009-2010 Fiat Bravo 1.6 Turbo 90PS Diesel
2010-2014 Fiat Bravo 1.6 Turbo 105PS Diesel Front Pads 2 Wear Leads
2010-2014 Fiat Bravo 1.6 Turbo 120PS Diesel Front Pads 2 Wear Leads
2007-2008 Fiat Bravo 1.9 Turbo 90PS Diesel
2007-2010 Fiat Bravo 1.9 Turbo 120PS Diesel
2010-2014 Fiat Bravo 1.9 Turbo 120PS Diesel Front Pads 2 Wear Leads
1995-1996 Fiat Bravo 2.0
1997-2002 Fiat Bravo 2.0
1995-1997 Fiat Coupe 2.0 Turbo 190PS Petrol
1993-1996 Fiat Croma 2.0 Turbo Petrol
1993-1996 Fiat Croma 2.5
2005-2010 Fiat Doblo 1.3 Diesel
2005-2010 Fiat Doblo 1.4
2005-2010 Fiat Doblo 1.9 Diesel
2005-2010 Fiat Doblo 1.9 Turbo Diesel
2008-2010 Fiat Fiorino Combi 1.3 Turbo 95PS Diesel
2010-2020 Fiat Fiorino Combi 1.3 Turbo 95PS Diesel Front Pads 2 Wear Leads
2005-2012 Fiat Idea 1.3 Turbo 90PS Diesel
2004-2012 Fiat Idea 1.9 Turbo Diesel
2007-2018 Fiat Linea 1.4 Turbo Petrol
1996-1997 Fiat Marea 2.0
1997-2002 Fiat Marea 2.0
1996-1997 Fiat Marea 2.4 Turbo Diesel
1997-2000 Fiat Marea 2.4 Turbo Diesel
1996-1997 Fiat Marea Weekend 2.0
1997-2001 Fiat Marea Weekend 2.0
1996-1997 Fiat Marea Weekend 2.4 Turbo Diesel
1997-2001 Fiat Marea Weekend 2.4 Turbo Diesel
2001-2007 Fiat Stilo 1.8
2001-2007 Fiat Stilo 1.9 Turbo 115PS Diesel
2002-2007 Fiat Stilo 1.9 Turbo 80PS Diesel
2002-2007 Fiat Stilo 1.9 Turbo 90PS Diesel
2005-2007 Fiat Stilo 1.9 Turbo 120PS Diesel
2005-2007 Fiat Stilo 1.9 Turbo 100PS Diesel
2003-2007 Fiat Stilo Multiwagon 1.4
2002-2007 Fiat Stilo Multiwagon 1.6
2002-2007 Fiat Stilo Multiwagon 1.8
2003-2007 Fiat Stilo Multiwagon 1.9 Turbo 80PS Diesel
2003-2007 Fiat Stilo Multiwagon 1.9 Turbo 115PS Diesel
2004-2007 Fiat Stilo Multiwagon 1.9 Turbo 90PS Diesel
2005-2007 Fiat Stilo Multiwagon 1.9 Turbo 120PS Diesel
2005-2007 Fiat Stilo Multiwagon 1.9 Turbo 100PS Diesel
2008-2010 Lancia Delta 1.4 Turbo 120PS Petrol
2010-2014 Lancia Delta 1.4 Turbo 120PS Petrol Front Pads 2 Wear Leads
2010-2014 Lancia Delta 1.4 Turbo 140PS Petrol Front Pads 2 Wear Leads
2008-2010 Lancia Delta 1.6 Turbo Diesel
2010-2014 Lancia Delta 1.6 Turbo Diesel Front Pads 2 Wear Leads
1993-1996 Lancia Delta 2.0 Turbo Petrol
1996-2000 Lancia Delta 2.0 Turbo Petrol
1986-1988 Lancia Delta HF Turbo 2.0 165PS
1987-1989 Lancia Delta Integrale HF Turbo 2.0 Turbo 185PS Petrol
1989-1991 Lancia Delta Integrale HF Turbo 2.0 Turbo 200PS Petrol
1999-2006 Lancia Lybra 1.7
1999-2006 Lancia Lybra 1.9 Turbo Diesel
1999-2006 Lancia Lybra 2.0
1999-2006 Lancia Lybra 2.4 Turbo Diesel
2006-2012 Lancia Musa 1.3 Turbo Diesel
2008-2012 Lancia Musa 1.6 Turbo Diesel
2004-2008 Lancia Musa 1.9 Turbo Diesel
1987-1992 Lancia Thema 2.0 Turbo Petrol
1992-1994 Lancia Thema 2.0 Turbo Petrol
1992-1994 Lancia Thema 3.0 175PS
