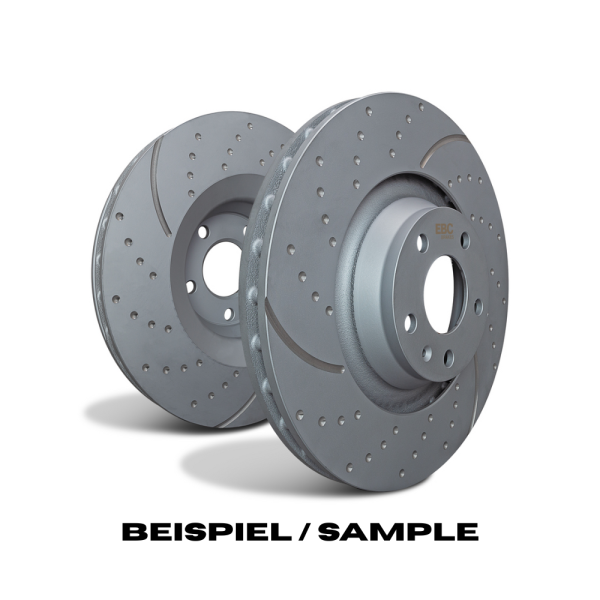

EBC Turbo Groove Disc – Maximum Performance through Slotted and Dimpled Precision
Are you looking for the perfect combination of aggressive aesthetics and uncompromising braking performance?
The EBC Turbo Groove Disc is the top choice for drivers who want to take their vehicle to a new level, both visually and technically. This performance brake disc was specifically developed to withstand the highest thermal loads. Whether on twisty backroads or during sporty use: the Turbo Groove Disc ensures a cool braking system and maximum deceleration when it matters most.
Peak Performance through Innovative Design
The striking design of the Turbo Groove Disc is much more than just looks. The combination of wide-reaching slots and special dimples makes this disc a true high-tech component for your braking system.
-
Efficient Gas Venting: The slots specifically channel brake gases, dust, and debris away from the contact surface. This effectively prevents dreaded brake fading and ensures a consistent pedal feel.
-
Dimpled instead of Drilled: Unlike completely cross-drilled discs, Turbo Groove Discs are only dimpled. This ensures optimal cooling without weakening the structural integrity of the disc – thus preventing stress cracks.
-
Self-Cleaning & Scraper Effect: The slots pull cool air under the pads and simultaneously act like a scraper. They remove glazing and residues from the brake pad, keeping the surface flat and guaranteeing a permanent aggressive "bite."
-
Precise Manufacturing: With a diameter of 284 mm, this disc is precisely matched to the requirements of your vehicle.
EBC Brakes – Performance "Made in UK"
Trust the expertise of one of the world's leading manufacturers of performance brakes. Turbo Groove Discs are manufactured in EBC's own factories in Great Britain. By having full control over the entire production process – from casting to final finish – EBC guarantees a material quality that is unrivaled in the aftermarket.
Safety for Operation in Europe:
Despite their sporty focus, legality is EBC's top priority. Many Turbo Groove brake discs already carry certifications. This performance brake disc has the following approval: KBA61188 / KBA61321*03
Pro Tip: To exploit the full performance of the Turbo Groove Disc, we recommend combining it with EBC Yellowstuff or Redstuff brake pads for higher friction coefficients and extreme stability.
Upgrade your braking system now to the ultimate Turbo Groove performance.
Technical Data
| Dimensions: |
284x39x22 mm |
| Standard brake caliper type: |
ATE |
| Fitting Position: |
Front Axle |
| Design: |
vented |
| Material: |
G3000 Grey Cast Iron with copper content (Discalloy®) |
| Certification: |
KBA61188 / KBA61321*03 |
| Article Number / EAN: |
GD564 / 5050953012969 |
Suitable for the following vehicles:
1997-2001 Alfa Romeo 145 1.7 Twin Spark Petrol
1995-1998 Alfa Romeo 145 2.0
1998-2001 Alfa Romeo 145 2.0
1997-2001 Alfa Romeo 146 1.7 Twin Spark Petrol
1995-2001 Alfa Romeo 146 2.0
1995-1998 Alfa Romeo 155 2.0 Twin Spark 150PS Petrol
1996-2000 Fiat Coupe 1.8 131PS
1995-1996 Fiat Coupe 2.0 139PS
1996-1998 Fiat Coupe 2.0 147PS
1998-2000 Fiat Coupe 2.0 154PS
1999-2002 Fiat Multipla 1.6
2002-2005 Fiat Multipla 1.6
2005-2010 Fiat Multipla 1.6
1999-2002 Fiat Multipla 1.9 Turbo Diesel
2002-2005 Fiat Multipla 1.9 Turbo Diesel
2005-2010 Fiat Multipla 1.9 Turbo Diesel
2003-2006 Fiat Punto 1.8
2003-2006 Fiat Punto 1.9 Turbo Diesel
1992-1995 Fiat Tipo 1.8
1992-1995 Fiat Tipo 2.0
1994-1997 Lancia Dedra 2.0
1991-1994 Lancia Dedra 2.0 Turbo Petrol
1991-1994 Lancia Dedra Integrale 2.0 Turbo Petrol
1994-1997 Lancia Dedra Integrale 16v 2.0
1993-1994 Lancia Delta 2.0
1994-1995 Lancia Delta 2.0
1994-1996 Lancia Delta 2.0
1996-2000 Lancia Delta 2.0
1998-2000 Lancia Delta LS 1.8
