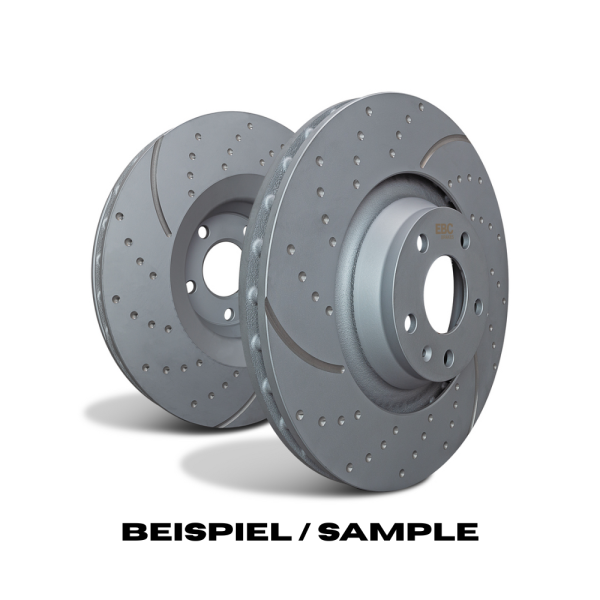

EBC Turbo Groove Disc – Maximum Performance through Slotted and Dimpled Precision
Are you looking for the perfect combination of aggressive aesthetics and uncompromising braking performance?
The EBC Turbo Groove Disc is the top choice for drivers who want to take their vehicle to a new level, both visually and technically. This performance brake disc was specifically developed to withstand the highest thermal loads. Whether on twisty backroads or during sporty use: the Turbo Groove Disc ensures a cool braking system and maximum deceleration when it matters most.
Peak Performance through Innovative Design
The striking design of the Turbo Groove Disc is much more than just looks. The combination of wide-reaching slots and special dimples makes this disc a true high-tech component for your braking system.
-
Efficient Gas Venting: The slots specifically channel brake gases, dust, and debris away from the contact surface. This effectively prevents dreaded brake fading and ensures a consistent pedal feel.
-
Dimpled instead of Drilled: Unlike completely cross-drilled discs, Turbo Groove Discs are only dimpled. This ensures optimal cooling without weakening the structural integrity of the disc – thus preventing stress cracks.
-
Self-Cleaning & Scraper Effect: The slots pull cool air under the pads and simultaneously act like a scraper. They remove glazing and residues from the brake pad, keeping the surface flat and guaranteeing a permanent aggressive "bite."
-
Precise Manufacturing: With a diameter of 306 mm, this disc is precisely matched to the requirements of your vehicle.
EBC Brakes – Performance "Made in UK"
Trust the expertise of one of the world's leading manufacturers of performance brakes. Turbo Groove Discs are manufactured in EBC's own factories in Great Britain. By having full control over the entire production process – from casting to final finish – EBC guarantees a material quality that is unrivaled in the aftermarket.
Safety for Operation in Europe:
Despite their sporty focus, legality is EBC's top priority. Many Turbo Groove brake discs already carry certifications. This performance brake disc has the following approval: E1-90R-02C0761/2524
Pro Tip: To exploit the full performance of the Turbo Groove Disc, we recommend combining it with EBC Yellowstuff or Redstuff brake pads for higher friction coefficients and extreme stability.
Upgrade your braking system now to the ultimate Turbo Groove performance.
Technical Data
| Dimensions: |
306x50x26 mm / 5-Hole |
| Fitting Position: |
Front Axle |
| Design: |
vented |
| Material: |
G3000 Grey Cast Iron with copper content (Discalloy®) |
| Certification: |
E1-90R-02C0761/2524 |
| Article Number / EAN: |
GD2289 / |
Suitable for the following vehicles:
- 2022- AUDI A3 8Y 1.00 Turbo 30 Petrol 110PS
- 2022- AUDI A3 8Y 1.40 Turbo hybrid 40 Petrol 204PS
- 2022- AUDI A3 8Y 1.40 Turbo hybrid 45 Petrol 245PS
- 2022- AUDI A3 8Y 1.50 Turbo 35 Petrol 150PS
- 2022- AUDI A3 8Y 2.00 Turbo 35 Diesel 150PS
- 2022- AUDI A3 8Y 2.00 Turbo Diesel 30 Diesel 116PS
- 2022- AUDI A3 quattro 8Y 1.40 Turbo hybrid 45 Petrol 245PS
- 2022- AUDI A3 quattro 8Y 2.00 Turbo 40 Diesel 200PS
- 2023- CUPRA Formentor 1.40 Turbo and Electric Petrol 204PS
- 2023- CUPRA Formentor 1.50 Turbo Petrol 150PS
- 2023- CUPRA Formentor 2.00 Turbo Petrol 190PS
- 2024- CUPRA Leon 1.50 Turbo Petrol 150PS
- 2022- CUPRA Leon 1.50 Turbo hybrid Petrol 150PS
- 2022- CUPRA Leon 2.00 Turbo Petrol 190PS
- 2023- CUPRA Leon 2.00 Turbo Diesel Diesel 150PS
- 2023- SKODA Superb (B9) 1.50 Turbo and Electric Hybrid 204PS
- 2023- SKODA Superb (B9) 1.50 Turbo and Electric Petrol 150PS
- 2023- SKODA Superb (B9) 2.00 Turbo Diesel 150PS
- 2023- SKODA Superb (B9) 2.00 Turbo Diesel 193PS
- 2023- SKODA Superb (B9) 2.00 Turbo Petrol 265PS
- 2020- VW Caddy 1.50 Turbo Petrol 114PS
- 2020- VW Caddy 2.00 Turbo Diesel 102PS
- 2020- VW Caddy 2.00 Turbo Diesel 122PS
- 2022- VW Caddy California 1.50 Turbo Petrol 114PS
- 2022- VW Caddy California 2.00 Turbo Diesel 102PS
- 2022- VW Caddy California 2.00 Turbo Diesel 122PS
- 2022- VW Caddy California 4Motion 2.00 Turbo Diesel 122PS
- 2022- VW Golf Mk8 1.00 Turbo Petrol 110PS
- 2022- VW Golf Mk8 1.00 Turbo Petrol 110PS
- 2022- VW Golf Mk8 1.00 Turbo Petrol 89PS
- 2022- VW Golf Mk8 1.00 Turbo and Electric Hybrid 110PS
- 2022- VW Golf Mk8 1.40 Turbo Petrol 150PS
- 2022- VW Golf Mk8 1.50 Turbo Petrol 150PS
- 2022- VW Golf Mk8 1.50 Turbo Petrol 130PS
- 2022- VW Golf Mk8 1.50 Turbo Petrol 110PS
- 2022- VW Golf Mk8 1.50 Turbo and Electric Hybrid 150PS
- 2022- VW Golf Mk8 1.50 Turbo and Electric Hybrid 130PS
- 2022- VW Golf Mk8 2.00 Turbo Diesel 115PS
- 2022- VW Golf Mk8 2.00 Turbo Diesel 150PS
- 2022- VW Golf Mk8 eHybrid 1.40 Turbo Hybrid Petrol 204PS
- 2024- VW Passat Eatate (B9) 1.50 Turbo and Electric Petrol 201PS
- 2024- VW Passat Eatate (B9) 1.50 Turbo and Electric Petrol 268PS
- 2024- VW Passat Eatate (B9) 1.50 Turbo hybrid Petrol 148PS
- 2024- VW Passat Eatate (B9) 2.00 Turbo Diesel 148PS
- 2024- VW Passat Eatate (B9) 2.00 Turbo Diesel 190PS
- 2024- VW Tiguan Mk3 1.50 Turbo hybrid Petrol 130PS
- 2024- VW Tiguan Mk3 1.50 Turbo hybrid Petrol 150PS
- 2024- VW Tiguan Mk3 1.50 Turbo hybrid Petrol 204PS
- 2024- VW Tiguan Mk3 1.50 Turbo hybrid Petrol 272PS
- 2024- VW Tiguan Mk3 2.00 Turbo Diesel 193PS
- 2024- VW Tiguan Mk3 2.00 Turbo Diesel 150PS
- 2024- VW Tiguan Mk3 2.00 Turbo Petrol 150PS
- 2024- VW Tiguan Mk3 2.00 Turbo Petrol 265PS
- 2021- VW COMMERCIAL Caddy Cargo 1.50 Turbo Petrol 114PS
- 2021- VW COMMERCIAL Caddy Cargo 2.00 Turbo Diesel 75PS
- 2021- VW COMMERCIAL Caddy Cargo 2.00 Turbo Diesel 102PS
- 2021- VW COMMERCIAL Caddy Cargo 2.00 Turbo Diesel 122PS
- 2021- VW COMMERCIAL Caddy Cargo 4Motion 2.00 Turbo Diesel 122PS
- 2021- VW COMMERCIAL Caddy Maxi 1.50 Turbo Petrol 114PS
- 2021- VW COMMERCIAL Caddy Maxi 2.00 Turbo Diesel 102PS
- 2021- VW COMMERCIAL Caddy Maxi 2.00 Turbo Diesel 122PS
- 2021- VW COMMERCIAL Caddy Maxi 4motion 2.00 Turbo Diesel 122PS
