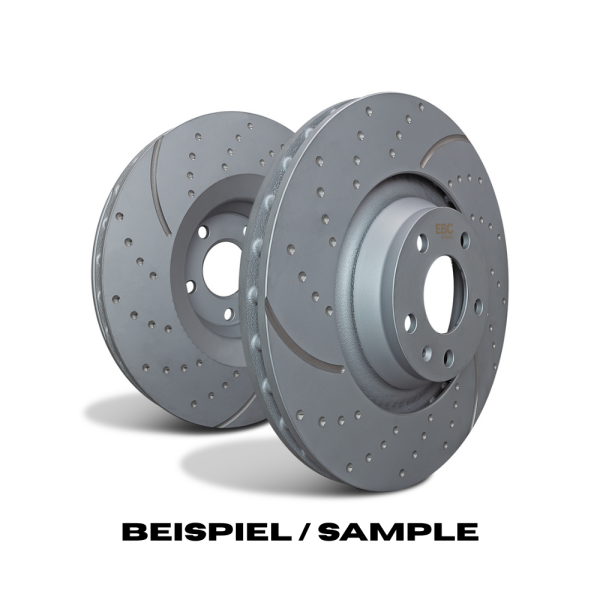

EBC Turbo Groove Disc – Maximum Performance through Slotted and Dimpled Precision
Are you looking for the perfect combination of aggressive aesthetics and uncompromising braking performance?
The EBC Turbo Groove Disc is the top choice for drivers who want to take their vehicle to a new level, both visually and technically. This performance brake disc was specifically developed to withstand the highest thermal loads. Whether on twisty backroads or during sporty use: the Turbo Groove Disc ensures a cool braking system and maximum deceleration when it matters most.
Peak Performance through Innovative Design
The striking design of the Turbo Groove Disc is much more than just looks. The combination of wide-reaching slots and special dimples makes this disc a true high-tech component for your braking system.
-
Efficient Gas Venting: The slots specifically channel brake gases, dust, and debris away from the contact surface. This effectively prevents dreaded brake fading and ensures a consistent pedal feel.
-
Dimpled instead of Drilled: Unlike completely cross-drilled discs, Turbo Groove Discs are only dimpled. This ensures optimal cooling without weakening the structural integrity of the disc – thus preventing stress cracks.
-
Self-Cleaning & Scraper Effect: The slots pull cool air under the pads and simultaneously act like a scraper. They remove glazing and residues from the brake pad, keeping the surface flat and guaranteeing a permanent aggressive "bite."
-
Precise Manufacturing: With a diameter of 306 mm, this disc is precisely matched to the requirements of your vehicle.
EBC Brakes – Performance "Made in UK"
Trust the expertise of one of the world's leading manufacturers of performance brakes. Turbo Groove Discs are manufactured in EBC's own factories in Great Britain. By having full control over the entire production process – from casting to final finish – EBC guarantees a material quality that is unrivaled in the aftermarket.
Safety for Operation in Europe:
Despite their sporty focus, legality is EBC's top priority. Many Turbo Groove brake discs already carry certifications. This performance brake disc has the following approval: E1-90R-02C0761/2524
Pro Tip: To exploit the full performance of the Turbo Groove Disc, we recommend combining it with EBC Yellowstuff or Redstuff brake pads for higher friction coefficients and extreme stability.
Upgrade your braking system now to the ultimate Turbo Groove performance.
Technical Data
| Dimensions: |
306x50x26 mm |
| Standard brake caliper type: |
ATE |
| Fitting Position: |
Front Axle |
| Design: |
vented |
| Material: |
G3000 Grey Cast Iron with copper content (Discalloy®) |
| Certification: |
E1-90R-02C0761/2524 |
| Article Number / EAN: |
GD2289 / |
Suitable for the following vehicles:
2022- Audi A3 8Y 1.0 Turbo 30 110PS Petrol
2022- Audi A3 8Y 1.4 Turbo Hybrid 40 204PS Petrol
2022- Audi A3 8Y 1.4 Turbo Hybrid 45 245PS Petrol
2022- Audi A3 8Y 1.5 Turbo 35 150PS Petrol
2022- Audi A3 8Y 2.0 Turbo 35 150PS Diesel
2022- Audi A3 8Y 2.0 Turbo Diesel 30 116PS Diesel
2022- Audi A3 Quattro 8Y 1.4 Turbo Hybrid 45 245PS Petrol
2022- Audi A3 Quattro 8Y 2.0 Turbo 40 200PS Diesel
2023- Cupra Formentor 1.4 Turbo and Electric 204PS Petrol
2023- Cupra Formentor 1.5 Turbo 150PS Petrol
2023- Cupra Formentor 2.0 Turbo 190PS Petrol
2024- Cupra Leon 1.5 Turbo 150PS Petrol
2022- Cupra Leon 1.5 Turbo Hybrid 150PS Petrol
2022- Cupra Leon 2.0 Turbo 190PS Petrol
2023- Cupra Leon 2.0 Turbo Diesel 150PS Diesel
2023- Skoda Superb (B9) 1.5 Turbo and Electric 204PS Hybrid
2023- Skoda Superb (B9) 2.0 Turbo 150PS Diesel
2023- Skoda Superb (B9) 2.0 Turbo 193PS Diesel 4x4
2023- Skoda Superb (B9) 2.0 Turbo 265PS Petrol 4x4
2020- VW Caddy 1.5 Turbo 114PS Petrol
2020- VW Caddy 2.0 Turbo 102PS Diesel
2020- VW Caddy 2.0 Turbo 122PS Diesel
2022- VW Caddy California 1.5 Turbo 114PS Petrol
2022- VW Caddy California 2.0 Turbo 102PS Diesel
2022- VW Caddy California 2.0 Turbo 122PS Diesel
2022- VW Caddy California 4Motion 2.0 Turbo 122PS Diesel
2022- VW Golf MK8 1.0 Turbo 110PS Petrol
2022- VW Golf MK8 1.0 Turbo 89PS Petrol
2022- VW Golf MK8 1.0 Turbo and Electric 110PS Hybrid
2022- VW Golf MK8 1.4 Turbo 150PS Petrol
2022- VW Golf MK8 1.5 Turbo 150PS Petrol
2022- VW Golf MK8 1.5 Turbo 130PS Petrol
2022- VW Golf MK8 1.5 Turbo 110PS Petrol
2022- VW Golf MK8 1.5 Turbo and Electric 150PS Hybrid
2022- VW Golf MK8 1.5 Turbo and Electric 130PS Hybrid
2022- VW Golf MK8 2.0 Turbo 115PS Diesel
2022- VW Golf MK8 2.0 Turbo 150PS Diesel
2022- VW Golf MK8 eHybrid 1.4 Turbo Hybrid 204PS Petrol
2024- VW Passat Eatate (B9) 1.5 Turbo and Electric 201PS Petrol PHEV PR-Code 1ZA
2024- VW Passat Eatate (B9) 1.5 Turbo and Electric 268PS Petrol PHEV PR-Code 1ZA
2024- VW Passat Eatate (B9) 1.5 Turbo Hybrid 148PS Petrol PR-Code 1ZA
2024- VW Passat Eatate (B9) 2.0 Turbo 148PS Diesel PR-Code 1ZA
2024- VW Passat Eatate (B9) 2.0 Turbo 190PS Diesel PR-Code 1ZA
2024- VW Tiguan MK3 1.5 Turbo Hybrid 130PS Petrol PR-Code 1ZA
2024- VW Tiguan MK3 1.5 Turbo Hybrid 150PS Petrol PR-Code 1ZA
2024- VW Tiguan MK3 1.5 Turbo Hybrid 204PS Petrol PR-Code 1ZA
2024- VW Tiguan MK3 1.5 Turbo Hybrid 272PS Petrol PR-Code 1ZA
2024- VW Tiguan MK3 2.0 Turbo 193PS Diesel PR-Code 1ZA
2024- VW Tiguan MK3 2.0 Turbo 150PS Diesel PR-Code 1ZA
2024- VW Tiguan MK3 2.0 Turbo 150PS Petrol PR-Code 1ZA
2024- VW Tiguan MK3 2.0 Turbo 265PS Petrol PR-Code 1ZA
