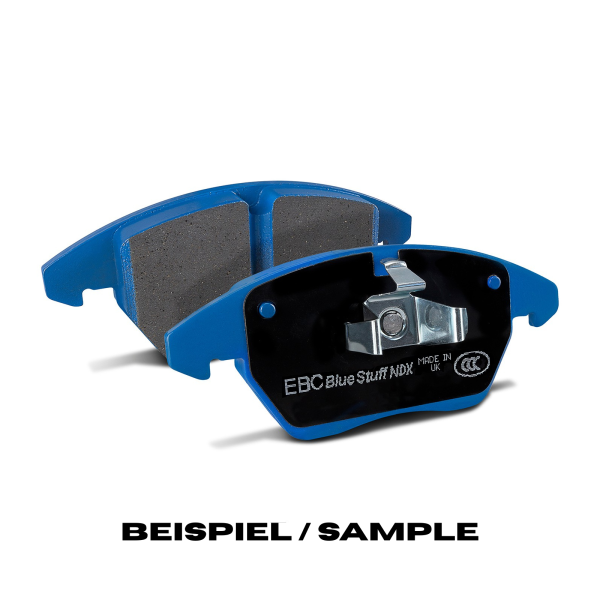

EBC Bluestuff NDX – The Ultimate Endurance and Trackday Brake Pad
Are you looking for a brake pad that perfectly masters the balancing act between the racetrack and street legality?
The EBC Bluestuff NDX is a genuine high-performance brake pad developed for the highest demands in trackday and racing environments. Designed as an endurance pad, it offers immense thermal stability and an outstanding service life under continuous load. What makes it special: Despite its motorsport roots, it offers excellent cold bite response, making it one of the few true racing pads that also function safely on the road.
Motorsport Technology for Maximum Endurance
The NDX compound of the Bluestuff series is characterized by an extreme friction coefficient and unprecedented stability.
-
Constant Friction Coefficient (0.45): Bluestuff offers an extremely linear braking effect across a vast temperature window. This gives you maximum control and confidence in your brakes during every maneuver.
-
Chemical Interlayer: A special bonding layer between the friction material and the backplate provides triple the bonding strength. This virtually eliminates the risk of pad detachment under extreme heat.
-
Heat Resistance over 900°C: Even with glowing discs on the racetrack, Bluestuff provides reliable deceleration and protects the system from overheating.
-
Deep V-Grooves: The distinctive grooves in the pad not only assist with cooling but also collect dirt and debris, promoting the self-cleaning of the system under extreme conditions.
EBC Brakes – Endurance Engineering
Manufactured in EBC's UK factories, Bluestuff NDX is frequently used in national racing series. It is the answer to the demand for a pad that lasts longer than typical sport pads without being overly aggressive on the discs. Thanks to a special "Deep Scorching" process (pre-bedding), the pad is also extremely quick to reach its full potential.
Safety with ECE-R90 Approval:
Although developed for racing, many Bluestuff pads carry ECE-R90 approval. This makes it the perfect upgrade for drivers who want to drive their vehicle to the track on its own wheels and start racing immediately without changing pads.
Pro Tip: Bluestuff NDX is the ideal partner for the EBC Blade Disc. This combination offers the necessary thermal capacity to confidently withstand 15-20 minutes of continuous use on the Ring.
Dominate the track with the endurance of EBC Bluestuff NDX.
Technical Data
| Fitting Position: |
Front Axle |
| Scope of Delivery: |
4x Brake Pads / corresponds to 1 set per axle |
| Series: |
EBC Bluestuff (NDX Series) |
| Certification: |
Without certification. Offroad use only. |
| Application: |
Trackday / Endurance / Clubsport / Road |
| Article Number / EAN: |
DP5223NDX / 5039221052234 |
Suitable for the following vehicles:
- 1964-1966 AC Cobra 7.00
- 1969-1972 Aston Martin DBS V8 5.30
- 1976-1978 Aston Martin Lagonda 5.30
- 1973-1990 Aston Martin V8 5.30
- 1977-1989 Aston Martin V8 Vantage 5.30
- 1985-1990 Aston Martin V8 Zagato 5.30
- 1968-1969 Bizzarrini 5300 GT Strada 5.40
- 1971-1985 De Tomaso Deauville 5.80 300PS
- 1974-1988 De Tomaso Longchamps 5.80
- 1967-1972 De Tomaso Mangusta 4.70 306PS
- 1980-1990 De Tomaso Pantera GT-5 5.80
- 1984-1990 De Tomaso Pantera GT-5S 5.80
- 1984-1988 De Tomaso Pantera GTS 5.80
- 1967-1970 Ferrari 365 GTB 4.40
- 1968-1970 Ferrari 365 GTC 4.40
- 1968-1974 Iso Fidia 5.40
- 1968-1974 Iso Fidia 5.70
- 1968-1974 Iso Fidia 5.80
- 1968-1974 Iso Grifo 5.40
- 1968-1974 Iso Grifo 5.70
- 1969-1974 Iso Grifo 7.00
- 1969-1974 Iso Grifo 7.40
- 1969-1974 Iso Lele 5.40
- 1970-1974 Iso Lele 5.80
- 1968-1970 Iso Rivolta IR 300 5.40
- 1968-1970 Iso Rivolta IR 340 5.40
- 1964-1966 Lamborghini 350 GT 3.50 280PS
- 1966-1968 Lamborghini 400 GT 3.90 324PS
- 1968-1970 Lamborghini Espada Series 1 3.90 330PS
- 1970-1972 Lamborghini Espada Series 2 3.90 355PS
- 1972-1978 Lamborghini Espada Series 3 3.90 355PS
- 1968-1969 Lamborghini Islero 3.90
- 1970-1972 Lamborghini Jarama 3.90 350PS
- 1972-1978 Lamborghini Jarama S 3.90 365PS
- 1966-1969 Lamborghini Miura 3.90 350PS
- 1968-1971 Lamborghini Miura 3.90 370PS
- 1971-1973 Lamborghini Miura SV 3.90 385PS
- 1962-1964 Maserati 3500 GT 3.50
- 1960-1965 Maserati 5000 GT 5.00
- 1968-1973 Maserati Ghibli (AM115) 4.70 310PS
- 1970-1973 Maserati Ghibli (AM115) 4.90 335PS
- 1968-1970 Maserati Indy 4.20
- 1970-1973 Maserati Indy 4.70
- 1973-1975 Maserati Indy 4.90
- 1973-1982 Maserati Khamsin 4.90
- 1965-1973 Maserati Mexico 4.10
- 1965-1973 Maserati Mexico 4.70
- 1963-1964 Maserati Mistral 3.50
- 1964-1966 Maserati Mistral 3.70
- 1967-1969 Maserati Mistral 4.00
- 1963-1966 Maserati Quattroporte (AM107) 4.10 260PS
- 1966-1970 Maserati Quattroporte (AM107) 4.70 290PS
- 1979-1985 Maserati Quattroporte (AM330) 4.10 255PS
- 1979-1986 Maserati Quattroporte (AM330) 4.90 280PS
- 1963-1964 Maserati Sebring 3.50
- 1964-1966 Maserati Sebring 3.70
- 1967-1969 Maserati Sebring 4.00
- 1974-1975 Panther FF 4.00
