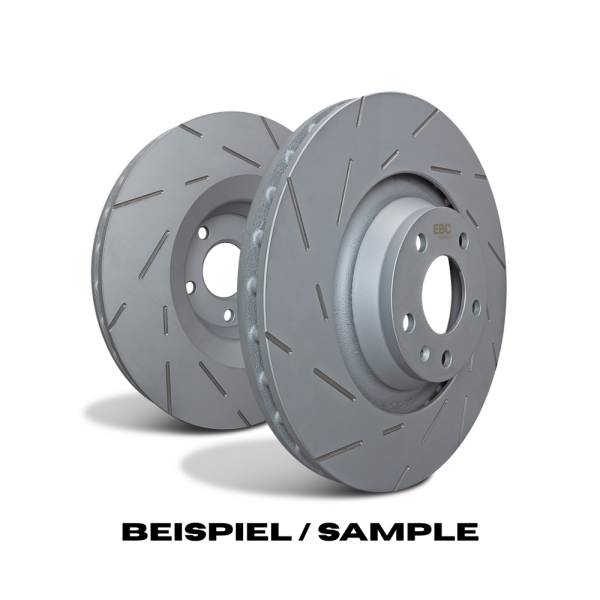

EBC Black Dash Disc – Performance Brake Disc for Maximum Smoothness
Are you looking for sporty braking performance without compromising on driving comfort?
The EBC Black Dash Disc (USR Series) was developed for drivers who value optimized braking performance and a refined, subtle appearance. Thanks to its special slot design, it offers the advantages of a sport brake disc – such as efficient gas venting and consistent braking force – while maintaining minimal noise levels. This makes it the ideal solution for high-quality vehicles and drivers who prefer a confident, quiet braking behavior.
Technology for the Highest Demands
The standout feature of the Black Dash Disc is its narrow slot design. Unlike coarse grooves, this arrangement ensures extremely even pad wear and maximum running smoothness.
-
Optimized Gas Venting: The narrow slots efficiently channel away brake gases, heat, and moisture. This prevents brake fade and ensures a precise response in every driving situation.
-
Low-Noise Design: The Black Dash series is known for its exceptional smoothness. The slot arrangement minimizes air turbulence and thus the typical humming noises often associated with sport brake discs.
-
Maximum Thermal Stability: By using high-carbon G3000 grey cast iron, the disc can withstand extreme temperature fluctuations. The slots also provide constant ventilation of the contact surface, reducing the thermal load on the entire system.
-
Precise Manufacturing: With a diameter of 310 mm, the Black Dash Disc guarantees a perfect fit and the highest dimensional stability under load.
EBC Brakes – British Engineering
Black Dash Discs are manufactured to the highest quality standards at EBC's own production facilities in Great Britain. By using high-quality G3000 grey cast iron and strictly monitoring every production step, EBC offers a product that sets benchmarks in durability and reliability.
Safety for Europe:
Like all EBC performance products, Black Dash Discs are optimized for road use. This brake disc has the following approval: E1-90R-02C0755/2519 / KBA61188 / KBA61321*10.
Pro Tip: The Black Dash Disc harmonizes perfectly with EBC Redstuff brake pads. This combination offers excellent braking performance with very low dust development – ideal for well-maintained vehicles.
Choose elegance and performance with the EBC Black Dash Disc.
Technical Data
| Dimensions: |
310x49x22 mm |
| Standard brake caliper type: |
TRW |
| Fitting Position: |
Rear Axle |
| Design: |
vented |
| Material: |
G3000 Grey Cast Iron (High Carbon) |
| Certification: |
E1-90R-02C0755/2519 / KBA61188 / KBA61321*10 |
| Article Number / EAN: |
USR1416 / 5050953017643 |
Suitable for the following vehicles:
2003-2009 Audi A3 Quattro 8P 3.2
2020- Audi A3 Quattro 8Y 1.4 Turbo Hybrid 45 245PS Petrol
2020- Audi A3 Quattro 8Y 2.0 Turbo 40 200PS Diesel
2020- Audi Q3 F3 1.4 Turbo Hybrid 45 245PS Petrol
2020- Audi Q3 Quattro F3 1.4 Turbo Hybrid 45 245PS Petrol
2018- Audi Q3 Quattro F3 2.0 Turbo 187PS Diesel
2018- Audi Q3 Quattro F3 2.0 Turbo 227PS Petrol
2018- Audi Q3 Quattro F3 2.0 Turbo 187PS Petrol
2019- Audi Q3 Quattro F3 2.0 Turbo 40 200PS Diesel
2020- Audi Q3 Quattro F3 2.0 Turbo 45 245PS Petrol
2006-2012 Audi S3 8P PR-1LK 2.0 Turbo 265PS Petrol Brake lines with Banjos
2006-2012 Audi S3 8P PR-1LK 2.0 Turbo 265PS Petrol
2006-2012 Audi S3 8P PR-1ZK 2.0 Turbo 265PS Petrol Brake lines with Banjos
2006-2012 Audi S3 8P PR-1ZK 2.0 Turbo 265PS Petrol
2013-2016 Audi S3 8V 2.0 Turbo 300PS Petrol
2013-2016 Audi S3 8V 2.0 Turbo 280PS Petrol
2016-2020 Audi S3 8V 2.0 Turbo 310PS Petrol
2020- Audi S3 8Y 2.0 Turbo 310PS Petrol
2019-2023 Audi SQ2 2.0 Turbo 300PS Petrol
2014-2019 Audi TT 8S 2.0 Turbo 230PS Petrol
2019-2022 Audi TT 8S 2.0 Turbo 45 245PS Petrol
2019-2022 Audi TT 8S 2.0 Turbo 45 245PS Petrol with clips on backplate
2019-2022 Audi TT 8S 2.0 Turbo 45 245PS Petrol no clips on backplate
2014-2019 Audi TT Quattro 8S 2.0 Turbo 230PS Petrol
2019-2022 Audi TT Quattro 8S 2.0 Turbo 45 245PS Petrol with clips on backplate
2019-2022 Audi TT Quattro 8S 2.0 Turbo 45 245PS Petrol
2019-2022 Audi TT Quattro 8S 2.0 Turbo 45 245PS Petrol no clips on backplate
2014-2020 Audi TTS Quattro 8S 2.0 Turbo 310PS Petrol
2015-2020 Audi TTS Quattro 8S 2.0 Turbo 310PS Petrol no clips on backplate
2015-2020 Audi TTS Quattro 8S 2.0 Turbo 310PS Petrol with clips on backplate
2020-2022 Audi TTS Quattro 8S 2.0 Turbo 320PS Petrol with clips on backplate
2023- Cupra Ateca 1.5 Turbo 150PS Petrol
2018- Cupra Ateca 2.0 Turbo 296PS Petrol
2023- Cupra Ateca 2.0 Turbo 190PS Petrol
2020- Cupra Formentor 1.4 Turbo and Electric 242PS Petrol
2021- Cupra Formentor 1.4 Turbo and Electric 204PS Petrol
2024- Cupra Formentor 1.5 Turbo Hybrid 272PS Petrol
2020- Cupra Formentor 2.0 Turbo 310PS Petrol
2021- Cupra Formentor 2.0 Turbo and Electric 245PS Hybrid
2020- Cupra Leon 1.4 Turbo and Electric 245PS Hybrid
2024- Cupra Leon 1.5 Turbo Hybrid 272PS Petrol
2020-2024 Cupra Leon 2.0 Turbo 300PS Petrol
2013-2018 Seat Leon (5F) 1.8 Turbo 180PS Petrol
2014-2016 Seat Leon (5F) Cupra 2.0 Turbo 265PS Petrol
2014-2016 Seat Leon (5F) Cupra 2.0 Turbo 280PS Petrol
2015-2017 Seat Leon (5F) Cupra 2.0 Turbo 290PS Petrol
2017-2020 Seat Leon (5F) Cupra 2.0 Turbo 300PS Petrol
2021- Skoda Kodiaq RS 2.0 Turbo 245PS Petrol 4WD
2018-2021 Skoda Kodiaq RS 2.0 Twin Turbo 239PS Diesel 4WD
2021-2023 Skoda Kodiaq vRS 2.0 Turbo 245PS Petrol 4WD
2018-2021 Skoda Kodiaq vRS 2.0 Twin Turbo 239PS Diesel 4WD
2017-2020 Skoda Octavia (5E) RS 2.0 Turbo 245PS Petrol
2017-2020 Skoda Octavia (5E) vRS 2.0 Turbo 245PS Petrol
2020- Skoda Octavia (NX) RS 1.4 Turbo and Electric 245PS Hybrid
2020- Skoda Octavia (NX) RS 2.0 Turbo 200PS Diesel
2020- Skoda Octavia (NX) RS 2.0 Turbo 245PS Petrol
2020- Skoda Octavia (NX) RS 4x4 2.0 Turbo 200PS Diesel
2020- Skoda Octavia (NX) VRS 1.4 Turbo and Electric 245PS Hybrid
2020- Skoda Octavia (NX) VRS 2.0 Turbo 200PS Diesel
2020- Skoda Octavia (NX) VRS 2.0 Turbo 245PS Petrol
2020- Skoda Octavia (NX) VRS 4x4 2.0 Turbo 200PS Diesel
2008-2015 Skoda Superb (3T) 1.8 Turbo 150PS Petrol 4WD
2008-2015 Skoda Superb (3T) 1.8 Turbo 160PS Petrol 4WD
2008-2015 Skoda Superb (3T) 2.0 Turbo 170PS Diesel 4WD
2010-2015 Skoda Superb (3T) 2.0 Turbo 200PS Petrol
2008-2015 Skoda Superb (3T) 3.6 260PS 4WD
2014-2015 Skoda Superb (3T) 3.6 260PS 4WD
2015- Skoda Superb (3V) 2.0 Turbo 220PS Petrol
2015-2023 Skoda Superb (3V) 2.0 Turbo 280PS Petrol 4x4 Vented rear discs
2019-2023 Skoda Superb (3V) 2.0 Turbo 190PS Petrol
2019- Skoda Superb (3V) PHEV 1.4 Turbo and Electric 218PS Hybrid
2023- Skoda Superb (B9) 1.5 Turbo and Electric 150PS Hybrid
2023- Skoda Superb (B9) 1.5 Turbo and Electric 204PS Hybrid
2023- Skoda Superb (B9) 2.0 Turbo 193PS Diesel 4x4
2023- Skoda Superb (B9) 2.0 Turbo 150PS Diesel
2023- Skoda Superb (B9) 2.0 Turbo 265PS Petrol 4x4
2018- VW Arteon 1.5 Turbo 150PS Petrol
2017- VW Arteon 2.0 Turbo 150PS Diesel
2018- VW Arteon 2.0 Turbo 190PS Diesel
2018- VW Arteon 2.0 Turbo 190PS Petrol
2018- VW Arteon 4motion 2.0 Turbo 190PS Diesel
2020- VW Arteon 4motion 2.0 Turbo 200PS Diesel
2017- VW Arteon 4motion 2.0 Turbo 280PS Petrol
2017- VW Arteon 4motion 2.0 Twin Turbo 240PS Diesel
2020- VW Arteon eHybrid 1.4 Turbo Hybrid 215PS Petrol
2020- VW Arteon R 4motion 2.0 Turbo 316PS Petrol
2020- VW Arteon Shooting Brake 1.5 Turbo 150PS Petrol
2020- VW Arteon Shooting Brake 2.0 Turbo 150PS Diesel
2020- VW Arteon Shooting Brake 2.0 Turbo 200PS Diesel
2020- VW Arteon Shooting Brake 2.0 Turbo 190PS Petrol
2020- VW Arteon Shooting Brake eHybrid 1.4 Turbo Hybrid 215PS Petrol
2020- VW Arteon Shooting Brake R 4motion 2.0 Turbo 316PS Petrol
2012-2017 VW CC 2.0 Turbo Petrol
2012-2017 VW CC 3.6
2006-2009 VW Eos 3.2 250PS
2009-2011 VW Eos 3.6 260PS
2019- VW Golf MK8 2.0 Turbo 200PS Diesel
2013-2017 VW Golf GTI MK7 Performance Package 2.0 Turbo 230PS Petrol
2017-2019 VW Golf GTI MK7 Performance Package 2.0 Turbo 247PS Petrol
2019- VW Golf GTI MK8 2.0 Turbo 245PS Petrol
2019- VW Golf GTI MK8 2.0 Turbo 290PS Petrol
2016-2019 VW Golf GTI Clubsport MK7 2.0 Turbo 265PS Petrol
2016-2019 VW Golf GTI Clubsport S MK7 2.0 Turbo 310PS Petrol
2019 VW Golf GTI TCR MK7 2.0 Turbo 290PS Petrol
2009-2013 VW Golf R MK6 2.0 Turbo 270PS Petrol PR-1ZK
2009-2013 VW Golf R MK6 2.0 Turbo 270PS Petrol PR-1LM
2009-2013 VW Golf R MK6 2.0 Turbo 270PS Petrol PR-1LK
2013-2019 VW Golf R MK7 2.0 Turbo 280PS Petrol
2013-2019 VW Golf R MK7 2.0 Turbo 300PS Petrol
2017-2019 VW Golf R MK7 2.0 Turbo 310PS Petrol
2016-2019 VW Golf R MK7 360S 2.0 Turbo 360PS Petrol
2020- VW Golf R MK8 2.0 Turbo 320PS Petrol
2005-2009 VW Golf R32 MK5 3.2 250PS Petrol
2005-2010 VW Passat (B6) 2.0 Turbo 200PS Petrol
2005-2010 VW Passat (B6) 3.2 247PS Petrol To chassis code 3C7
2005-2010 VW Passat (B6) 3.2 247PS Petrol From chassis code 3C8
2007-2010 VW Passat (B6) 3.6 Petrol From chassis code 3C8
2007-2010 VW Passat (B6) 3.6 Petrol To chassis code 3C7
2011-2014 VW Passat (B7) 2.0 Turbo 210PS Petrol
2010-2012 VW Passat (B7) 3.6 Petrol To chassis code 3C7
2010-2012 VW Passat (B7) 3.6 Petrol From chassis code 3C8
2012-2014 VW Passat (B7) 4motion 3.6 Petrol
2015-2020 VW Passat (B8) 2.0 Turbo 220PS Petrol
2014- VW Passat (B8) 2.0 Twin Turbo 240PS Diesel
2016-2020 VW Passat (B8) 4motion 2.0 Turbo 280PS Petrol
2012-2015 VW Passat Alltrack 1.8 Turbo 160PS Petrol
2012-2015 VW Passat Alltrack 2.0 Turbo 140PS Diesel
2012-2015 VW Passat Alltrack 2.0 Turbo 170PS Diesel
2013-2015 VW Passat Alltrack 2.0 Turbo 177PS Diesel
2012-2015 VW Passat Alltrack 2.0 Turbo 207PS Petrol
2015- VW Passat Alltrack (3G) 2.0 Turbo 190PS Diesel
2015- VW Passat Alltrack (3G) 2.0 Turbo 240PS Diesel
2015- VW Passat Alltrack (3G) 2.0 Turbo 184PS Diesel
2015- VW Passat Alltrack (3G) 2.0 Turbo 220PS Petrol
2008-2012 VW Passat CC 2.0 Turbo Petrol
2008-2012 VW Passat CC 4motion 3.6 Petrol
2024- VW Passat Eatate (B9) 1.5 Turbo Hybrid 148PS Petrol
2024- VW Passat Eatate (B9) 2.0 Turbo 148PS Diesel
2009-2014 VW Scirocco R 2.0 Turbo 265PS Petrol
2014-2017 VW Scirocco R 2.0 Turbo 276PS Petrol
2014-2017 VW Scirocco R 2.0 Turbo 276PS Petrol PR-1ZK
2019-2024 VW Tiguan Mk2 1.5 Turbo 150PS Petrol vented rear discs
2019-2024 VW Tiguan Mk2 1.5 Turbo 130PS Petrol vented rear discs
2016-2024 VW Tiguan Mk2 2.0 Turbo 150PS Diesel vented rear discs
2016-2020 VW Tiguan Mk2 4Motion 2.0 Turbo 190PS Diesel vented rear discs
2016-2024 VW Tiguan Mk2 4Motion 2.0 Turbo 150PS Diesel vented rear discs
2019-2024 VW Tiguan Mk2 4Motion 2.0 Turbo 200PS Diesel vented rear discs
2016-2018 VW Tiguan Mk2 4Motion 2.0 Turbo 180PS Petrol vented rear discs
2016-2020 VW Tiguan Mk2 4Motion 2.0 Turbo 220PS Petrol vented rear discs
2019-2020 VW Tiguan Mk2 4Motion 2.0 Turbo 190PS Petrol vented rear discs
2021-2024 VW Tiguan Mk2 4Motion 2.0 Turbo 245PS Petrol
2016-2020 VW Tiguan Mk2 4Motion 2.0 Twin Turbo 240PS Diesel
2024- VW Tiguan Mk3 1.5 Turbo Hybrid 130PS Petrol
2024- VW Tiguan Mk3 1.5 Turbo Hybrid 150PS Petrol
2024- VW Tiguan Mk3 1.5 Turbo Hybrid 204PS Petrol
2024- VW Tiguan Mk3 1.5 Turbo Hybrid 272PS Petrol
2024- VW Tiguan Mk3 2.0 Turbo 150PS Diesel
2024- VW Tiguan Mk3 2.0 Turbo 193PS Diesel
2024- VW Tiguan Mk3 2.0 Turbo 265PS Petrol
2024- VW Tiguan Mk3 2.0 Turbo 150PS Petrol
2017-2018 VW Tiguan Allspace 1.4 Turbo 150PS Petrol vented rear discs
2018- VW Tiguan Allspace 1.5 Turbo 150PS Petrol vented rear discs
2017- VW Tiguan Allspace 2.0 Turbo 150PS Diesel vented rear discs
2017- VW Tiguan Allspace 4Motion 2.0 Turbo 150PS Diesel vented rear discs
2017- VW Tiguan Allspace 4Motion 2.0 Turbo 190PS Diesel vented rear discs
2017- VW Tiguan Allspace 4Motion 2.0 Turbo 180PS Petrol vented rear discs
2017-2020 VW Tiguan Allspace 4Motion 2.0 Turbo 220PS Petrol vented rear discs
2017- VW Tiguan Allspace 4Motion 2.0 Twin Turbo 240PS Diesel
2020- VW Tiguan R Mk2 4Motion 2.0 Turbo 320PS Petrol
