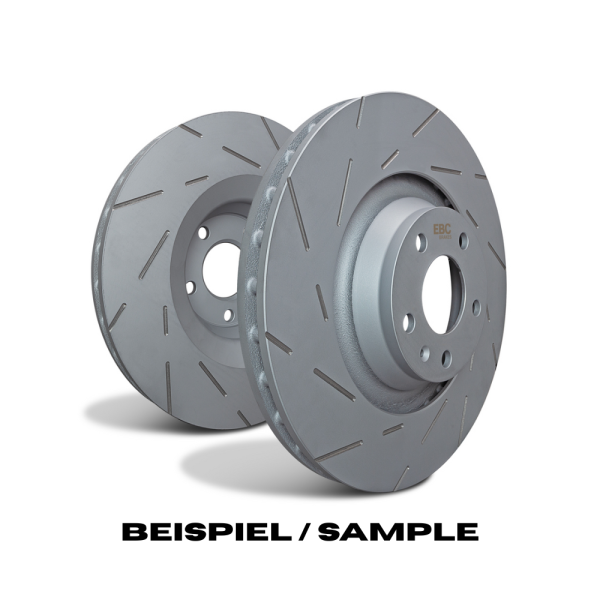

EBC Black Dash Disc – Performance Brake Disc for Maximum Smoothness
Are you looking for sporty braking performance without compromising on driving comfort?
The EBC Black Dash Disc (USR Series) was developed for drivers who value optimized braking performance and a refined, subtle appearance. Thanks to its special slot design, it offers the advantages of a sport brake disc – such as efficient gas venting and consistent braking force – while maintaining minimal noise levels. This makes it the ideal solution for high-quality vehicles and drivers who prefer a confident, quiet braking behavior.
Technology for the Highest Demands
The standout feature of the Black Dash Disc is its narrow slot design. Unlike coarse grooves, this arrangement ensures extremely even pad wear and maximum running smoothness.
-
Optimized Gas Venting: The narrow slots efficiently channel away brake gases, heat, and moisture. This prevents brake fade and ensures a precise response in every driving situation.
-
Low-Noise Design: The Black Dash series is known for its exceptional smoothness. The slot arrangement minimizes air turbulence and thus the typical humming noises often associated with sport brake discs.
-
Maximum Thermal Stability: By using high-carbon G3000 grey cast iron, the disc can withstand extreme temperature fluctuations. The slots also provide constant ventilation of the contact surface, reducing the thermal load on the entire system.
-
Precise Manufacturing: With a diameter of 288 mm, the Black Dash Disc guarantees a perfect fit and the highest dimensional stability under load.
EBC Brakes – British Engineering
Black Dash Discs are manufactured to the highest quality standards at EBC's own production facilities in Great Britain. By using high-quality G3000 grey cast iron and strictly monitoring every production step, EBC offers a product that sets benchmarks in durability and reliability.
Safety for Europe:
Like all EBC performance products, Black Dash Discs are optimized for road use. This brake disc has the following approval: KBA61188 / KBA61321*08.
Pro Tip: The Black Dash Disc harmonizes perfectly with EBC Redstuff brake pads. This combination offers excellent braking performance with very low dust development – ideal for well-maintained vehicles.
Choose elegance and performance with the EBC Black Dash Disc.
Technical Data
| Dimensions: |
288x47x25 mm |
| Standard brake caliper type: |
Girling/TRW |
| Fitting Position: |
Front Axle |
| Design: |
vented |
| Material: |
G3000 Grey Cast Iron (High Carbon) |
| Certification: |
KBA61188 / KBA61321*08 |
| Article Number / EAN: |
USR602 / 5050953016547 |
Suitable for the following vehicles:
2001-2002 Audi A8 Quattro D2/4D 6.0 W12 420PS Petrol Front 4 Pad set
2001-2002 Audi A8 Quattro D2/4D 6.0 W12 420PS Petrol Front 8 Pad set
1992-1995 Audi 100 2.6
1990-1995 Audi 100 2.8
1990-1992 Audi 100 Avant Quattro 2.0
1991-1994 Audi 100 Avant Quattro 2.3
1992-1994 Audi 100 Avant Quattro 2.6
1991-1994 Audi 100 Avant Quattro 2.8
1992-1994 Audi 100 Quattro 2.6
1990-1995 Audi 100 Quattro 2.8
1995-1997 Audi A4 B5 1.8 Turbo Petrol
1997-1999 Audi A4 B5 1.8 Turbo Petrol
1999-2001 Audi A4 B5 1.8 Turbo Petrol
1996-1997 Audi A4 B5 1.9 Turbo 110PS Diesel
1997-1999 Audi A4 B5 1.9 Turbo 110PS Diesel
1999-2000 Audi A4 B5 1.9 Turbo 110PS Diesel
1999-2001 Audi A4 B5 1.9 Turbo 115PS Diesel
1997-1999 Audi A4 B5 2.4
1999-2001 Audi A4 B5 2.4
1998-1999 Audi A4 B5 2.5 Turbo Diesel
1999-2001 Audi A4 B5 2.5 Turbo Diesel
1995-1997 Audi A4 B5 2.6
1997-1999 Audi A4 B5 2.6
1999-2000 Audi A4 B5 2.6
1995-1997 Audi A4 B5 2.8
1997-1999 Audi A4 B5 2.8
1999-2000 Audi A4 B5 2.8
2001-2004 Audi A4 B6 1.8 Turbo Petrol
2001-2004 Audi A4 B6 1.9 Turbo 130PS Diesel
2001-2004 Audi A4 B6 2.0
2002-2004 Audi A4 B6 2.4
2001-2004 Audi A4 B6 2.5 Turbo Diesel
2004-2008 Audi A4 B7 1.9 Turbo Diesel
2004-2008 Audi A4 B7 2.0
2004-2008 Audi A4 B7 2.0 Turbo Diesel
2004-2008 Audi A4 B7 2.5 Turbo Diesel
2002-2009 Audi A4 Convertible 1.8 Turbo Petrol
2004-2006 Audi A4 Convertible 2.0
2005-2009 Audi A4 Convertible 2.0 Turbo Diesel
2005-2009 Audi A4 Convertible 2.0 Turbo Petrol
2002-2006 Audi A4 Convertible 2.4
2002-2006 Audi A4 Convertible 2.5 Turbo Diesel
2002-2006 Audi A4 Convertible 3.0
1997-2001 Audi A4 Quattro B5 1.8
2000-2001 Audi A4 Quattro B5 1.8
1995-1999 Audi A4 Quattro B5 1.8 Turbo Petrol
1999-2001 Audi A4 Quattro B5 1.8 Turbo Petrol
1997-1999 Audi A4 Quattro B5 1.9 Turbo Diesel
1999-2001 Audi A4 Quattro B5 1.9 Turbo Diesel
1998-1999 Audi A4 Quattro B5 2.5 Turbo Diesel
1999-2001 Audi A4 Quattro B5 2.5 Turbo Diesel
1995-1999 Audi A4 Quattro B5 2.6
1999-2000 Audi A4 Quattro B5 2.6
1995-1999 Audi A4 Quattro B5 2.8
1999-2000 Audi A4 Quattro B5 2.8
2001-2004 Audi A4 Quattro B6 1.8 Turbo Petrol
2001-2004 Audi A4 Quattro B6 1.9 Turbo 130PS Diesel
2001-2004 Audi A4 Quattro B6 2.5 Turbo Diesel
2004-2008 Audi A4 Quattro B7 2.0 Turbo 140PS Diesel
1997-2001 Audi A4 Quattro Avant B5 1.8
2000-2001 Audi A4 Quattro Avant B5 1.8
1995-1999 Audi A4 Quattro Avant B5 1.8 Turbo Petrol
1999-2001 Audi A4 Quattro Avant B5 1.8 Turbo Petrol
1997-1999 Audi A4 Quattro Avant B5 1.9 Turbo Diesel
1999-2001 Audi A4 Quattro Avant B5 1.9 Turbo Diesel
1998-1999 Audi A4 Quattro Avant B5 2.5 Turbo Diesel
1999-2001 Audi A4 Quattro Avant B5 2.5 Turbo Diesel
1995-1999 Audi A4 Quattro Avant B5 2.6
1999-2000 Audi A4 Quattro Avant B5 2.6
1995-1999 Audi A4 Quattro Avant B5 2.8
1999-2000 Audi A4 Quattro Avant B5 2.8
1994-1996 Audi A6 C4/4A 2.3
1994-1998 Audi A6 C4/4A 2.5 Turbo 140PS Diesel
1994-1998 Audi A6 C4/4A 2.6
1994-1998 Audi A6 C4/4A 2.8
1997-2001 Audi A6 C5/4B 1.8 Turbo Petrol
2001-2004 Audi A6 C5/4B 1.8 Turbo Petrol
1998-2001 Audi A6 C5/4B 1.9 Turbo Diesel
2001-2004 Audi A6 C5/4B 1.9 Turbo Diesel
1999-2001 Audi A6 C5/4B 2.0
2001-2004 Audi A6 C5/4B 2.0
1997-2001 Audi A6 C5/4B 2.4
1998-2001 Audi A6 C5/4B 2.5 Turbo 150PS Diesel
1998-2001 Audi A6 C5/4B 2.8
1996-1998 Audi A6 Quattro C4/4A 1.8 125PS
1994-1998 Audi A6 Quattro C4/4A 2.0 140PS
1994-1996 Audi A6 Quattro C4/4A 2.3 133PS
1995-1998 Audi A6 Quattro C4/4A 2.5 Turbo 140PS Diesel
1994-1998 Audi A6 Quattro C4/4A 2.6 150PS
1994-1998 Audi A6 Quattro C4/4A 2.8 174PS
1996-1998 Audi A6 Quattro C4/4A 2.8 193PS
2001-2004 Audi A6 Quattro C5/4B 1.8 Turbo Petrol
1998-2001 Audi A6 Quattro C5/4B 2.4 165PS
2001-2004 Audi A6 Quattro C5/4B 2.4 170PS
1998-2003 Audi A6 Quattro C5/4B 2.5 Turbo 150PS Diesel
1996-1998 Audi A6 Quattro Avant C4/4A 1.8 125PS
1994-1998 Audi A6 Quattro Avant C4/4A 2.0 140PS
1994-1998 Audi A6 Quattro Avant C4/4A 2.3 133PS
1995-1998 Audi A6 Quattro Avant C4/4A 2.5 Turbo 140PS Diesel
1994-1998 Audi A6 Quattro Avant C4/4A 2.6 150PS
1994-1998 Audi A6 Quattro Avant C4/4A 2.8 174PS
1996-1998 Audi A6 Quattro Avant C4/4A 2.8 193PS
2001-2004 Audi A6 Quattro Avant C5/4B 1.8 Turbo 150PS Petrol
1998-2001 Audi A6 Quattro Avant C5/4B 2.4 165PS
2001-2004 Audi A6 Quattro Avant C5/4B 2.4 170PS
1998-2003 Audi A6 Quattro Avant C5/4B 2.5 Turbo 150PS Diesel
1998-2004 Audi A6 Quattro Avant C5/4B 2.8 193PS
2009-2013 Seat Exeo 1.6 100PS
2008-2010 Seat Exeo 1.8 Turbo 150PS Petrol
2010-2013 Seat Exeo 1.8 Turbo 160PS Petrol
2010-2013 Seat Exeo 1.8 Turbo 120PS Petrol
2009-2013 Seat Exeo 2.0 Turbo 120PS Diesel
2009-2013 Seat Exeo 2.0 Turbo 143PS Diesel
2009-2013 Seat Exeo 2.0 Turbo 200PS Petrol
2002-2005 Skoda Superb (3U) 1.8 Turbo 150PS Petrol -3U69101369
2002-2005 Skoda Superb (3U) 1.9 Turbo 100PS Diesel
2002-2005 Skoda Superb (3U) 2.0 115PS -3U69101369
2004-2005 Skoda Superb (3U) 2.0 Turbo 140PS Diesel
2000-2001 VW Passat (B5) 1.8
1999-2001 VW Passat (B5) 1.8 Turbo Petrol
2001-2005 VW Passat (B5) 1.8 Turbo Petrol
1999-2000 VW Passat (B5) 1.9 Turbo 115PS Diesel
1999-2000 VW Passat (B5) 1.9 Turbo 110PS Diesel
2000-2001 VW Passat (B5) 1.9 Turbo 130PS Diesel
2000-2005 VW Passat (B5) 1.9 Turbo 115PS Diesel
2000-2005 VW Passat (B5) 1.9 Turbo 110PS Diesel
2000-2005 VW Passat (B5) 1.9 Turbo 100PS Diesel
2001-2005 VW Passat (B5) 1.9 Turbo 130PS Diesel
1999-2001 VW Passat (B5) 2.0
2001-2005 VW Passat (B5) 2.0
2003-2005 VW Passat (B5) 2.0 Turbo 136PS Diesel
1999-2001 VW Passat (B5) 2.3 148PS
2001-2005 VW Passat (B5) 2.3 168PS
1999-2001 VW Passat (B5) 2.5 Turbo 150PS Diesel
1999-2001 VW Passat (B5) 2.8 190PS
2001-2005 VW Passat (B5) 2.8 190PS
2000-2005 VW Passat (B5) 4motion 1.9 Turbo 110PS Diesel
2001-2005 VW Passat (B5) 4motion 1.9 Turbo 130PS Diesel
2001-2005 VW Passat (B5) 4motion 2.0
1998-2000 VW Passat (B5) 4motion 2.3 148PS
1999-2001 VW Passat (B5) 4motion 2.8 190PS
2001-2005 VW Passat (B5) 4motion 2.8 190PS
