Performance Cooling Upgrade

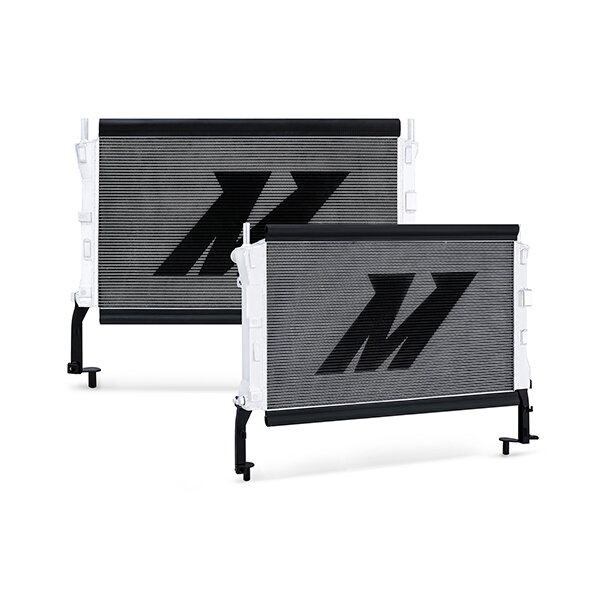

Mishimoto Aluminum Radiator
Forget brittle plastic tanks and leaking OEM radiators. When you push your vehicle to the limit—whether on the highway or during your next track day—your engine's thermal stability is everything. The Mishimoto Performance Aluminum Radiator isn't just a replacement part; it's a motorsport-grade upgrade engineered for maximum durability.
Constructed from high-quality full aluminum with precision TIG welds, this radiator offers unmatched resistance to thermal cycles and high pressure. The high-efficiency core provides a significantly larger surface area and increased fluid capacity. The result is optimized heat dissipation that keeps your engine within the ideal temperature range, even under extreme conditions. Secure the reserves you need to unleash your setup's full power at any time.
Full Aluminum
Construction without failure-prone plastic end tanks for maximum service life and stability.
TIG Welded
Highest precision in craftsmanship guarantees absolute leak-tightness, even under high system pressure.
Direct Fit
Engineered as a direct replacement. You use the original mounting points without additional modifications.
Maximize your cooling capacity and protect your engine for the long run!
| Overall Height |
29,75 inch / 756 mm |
| Overall Length |
15,25 inch / 387 mm |
| Overall Width |
4,75 inch / 121 mm |
| Core Length |
25,35 inch / 644 mm |
| Core Height |
14,7 inch / 373 mm |
| Core Thickness |
2,05 inch / 52 mm |
| Fluid Capacity |
2,67 gal / 10,11 L |
| Rows |
3 |
| Inlet |
1,34 inch / 34 mm |
| Outlet |
1,34 inch / 34 mm |
| Drain Plug Thread Size |
M12 x 1.5 |
| DPI |
|
| Engine Codes |
|
| Chassis Codes |
S-550 |
Notes:
