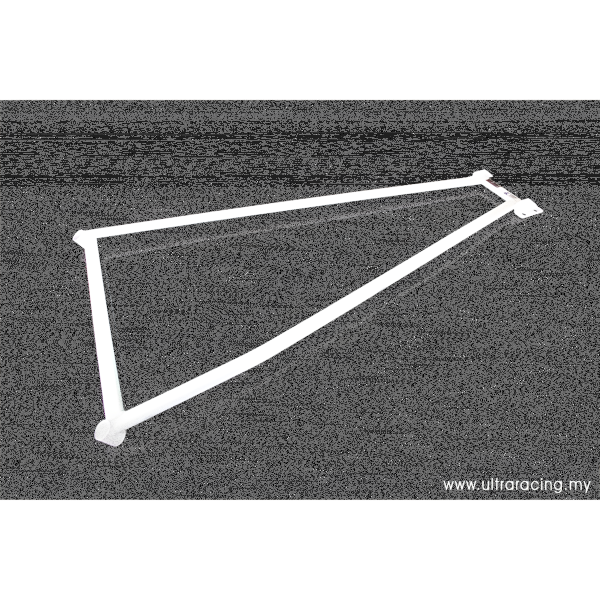

Ultra Racing Middle Lower Bars 4-Point - 08-16 Audi A4 B8 (Typ 8K) 2.0T (2WD/4WD) / 07+ Audi A5 B8 (Typ 8T) 2.0T (2WD/4WD) / 10-15 Audi RS 5 (8T) 4.2 (4WD) / 09-16 Audi S4 (B8) (Typ 8K) 3.0 (4WD) / 07-16 Audi S5 (B8) 8T 3.0 V6/4.2 V8 (4WD)

Ultra Racing Middle Lower Bars 4-Point - 08-16 Audi A4 B8 (Typ 8K) 2.0T (2WD/4WD) / 07+ Audi A5 B8 (Typ 8T) 2.0T (2WD/4WD) / 10-15 Audi RS 5 (8T) 4.2 (4WD) / 09-16 Audi S4 (B8) (Typ 8K) 3.0 (4WD) / 07-16 Audi S5 (B8) 8T 3.0 V6/4.2 V8 (4WD)

SKU: UR-ML4-1413
Category: Audi A4/S4/RS4 Suspension
Manufacturers:

195,00 €

Final price* , plus

order article
Delivery time: ca. 4 months (DE - int. shipments may differ)

Description
Reviews

Side lower bar

BEFORE:
On uneven / bumpy road, center section chassis will have different level of body flex cause by the weight transfer between front and rear.

AFTER:
Ultra Racing’s side lower bar will stabilize the weight transfer between front and rear, it can also minimize the damage from side impact.

MATERIAL SPECIFICATION & DESIGN

Every materials used are carefully selected to ensure the best performance and safety. The brackets are made of 4mm to 5mm steel plates, while the hollow steel tubes and oval tubes are of 1.2mm to 1.6mm thickness. These materials are selected to ensure the bars are rigid and strong to maintain constant geometry at all times, yet safe enough to crumble during an impact for safety reason.

All our raw materials has been made and tested with satisfactory result.

MILL / TEST CERTIFICATE (Chemical Composition)

Specification
- JIS 3101 SS 400 (Japan International Standard)
- JIS G 3141 SPCC SD (Japan International Standard)
- ASTM A 500 Grade A (American Standard)
- BS 1387 ( British Standard)

Steel vs. Aluminum

Why Ultra Racing use Steel instead of Aluminum?

First, steel is stronger than aluminum for the same size and thickness. In order for aluminum alloys to be at least the same strength as steel, it has to be at least double the thickness (steel 4mm = aluminum 8mm). When that happens, weight saving is not so apparent anymore. Of course there are also exotic materials and alloys that can match the strengths of steel, but the cost are astronomically high and therefore not very cost effective to bring into mass production.
